Barrel Compression Springs
Compression springs rarely fail on paper. Issues surface once assemblies start moving, loads drift off-axis, or guidance is less rigid than expected. Cylindrical springs can bow, rub adjacent components, or lose alignment under these conditions, even when rates and stresses appear sound in early calculations. Barrel compression springs are often selected to address these problems by using geometry to stabilize the spring through its full working range.
As a barrel and tapered compression springs manufacturer, Stalder Spring Works Inc. builds springs around how components behave in service, not just how they appear in a model. If you're evaluating stability issues or redesigning an existing assembly, request a quote to get the conversation started.
When Compression Springs Lose Alignment Under Load
In guided and semi-guided assemblies, compression forces are rarely centered perfectly. Minor misalignment can introduce side loading that leads to coil contact, uneven wear, or interference with nearby features. These conditions often appear during testing or early field use, where repeatable load behavior becomes harder to maintain.

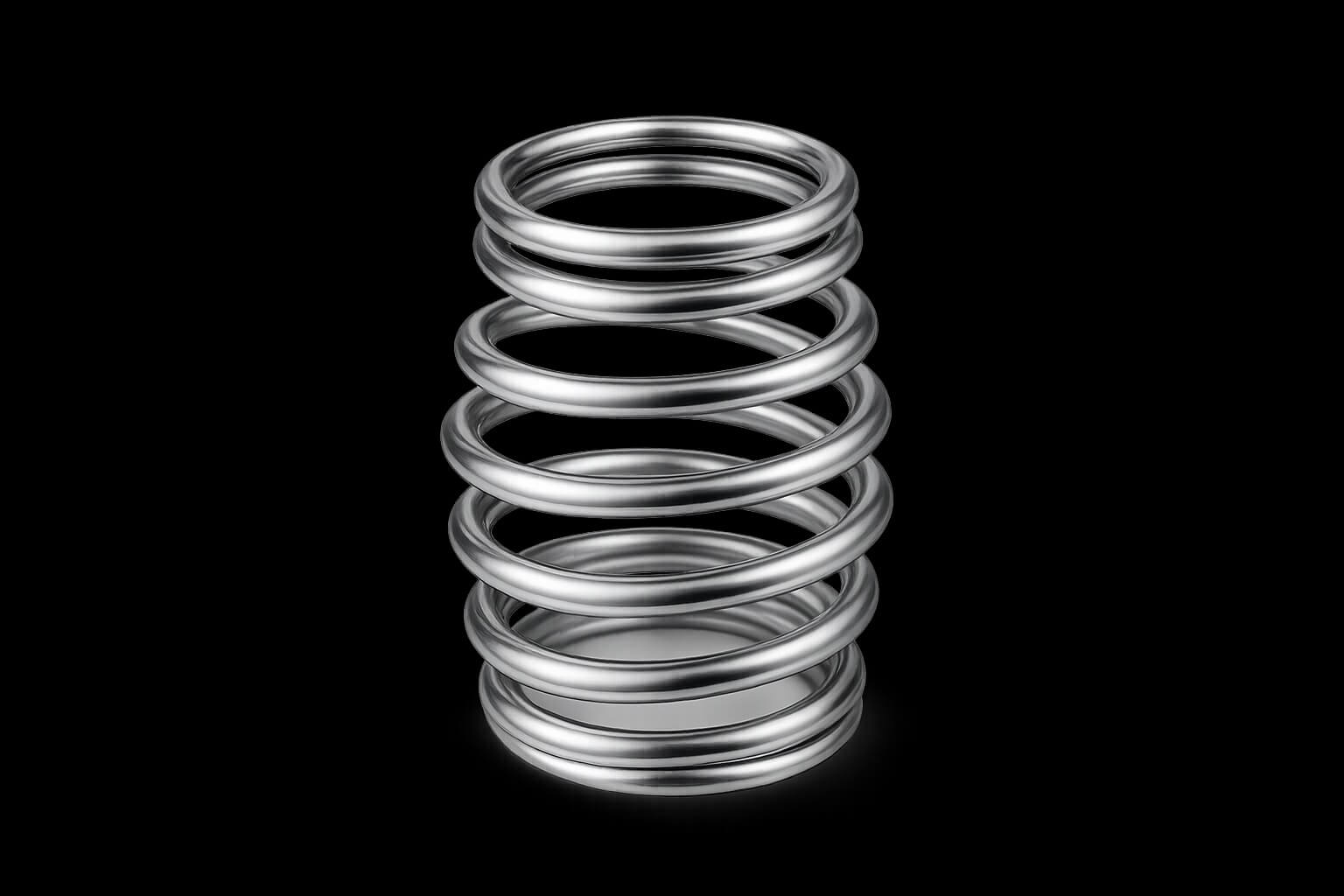

Barrel-shaped springs address this by increasing coil diameter at the center of the spring body, helping the spring remain centered as it compresses. This shape supports improved alignment and smoother motion in assemblies with tight packaging or variable loading.
Manufacturing Barrel Compression Springs With Controlled Geometry
Producing reliable barrel compression springs requires precise control during forming. Stalder Spring Works uses automatic spring coilers capable of varying coil diameter along the spring body while maintaining tight tolerances on critical parameters.
Manufacturing considerations include:
- Variable-diameter coiling for consistent barrel profiles
- Controlled pitch and active coil count to meet load requirements
- Material selection based on environment, cycle life, and stress limits
- Stress relief processes to stabilize spring performance
- Optional end conditioning for improved seating and alignment
This level of control supports repeatable performance from early builds through sustained production.

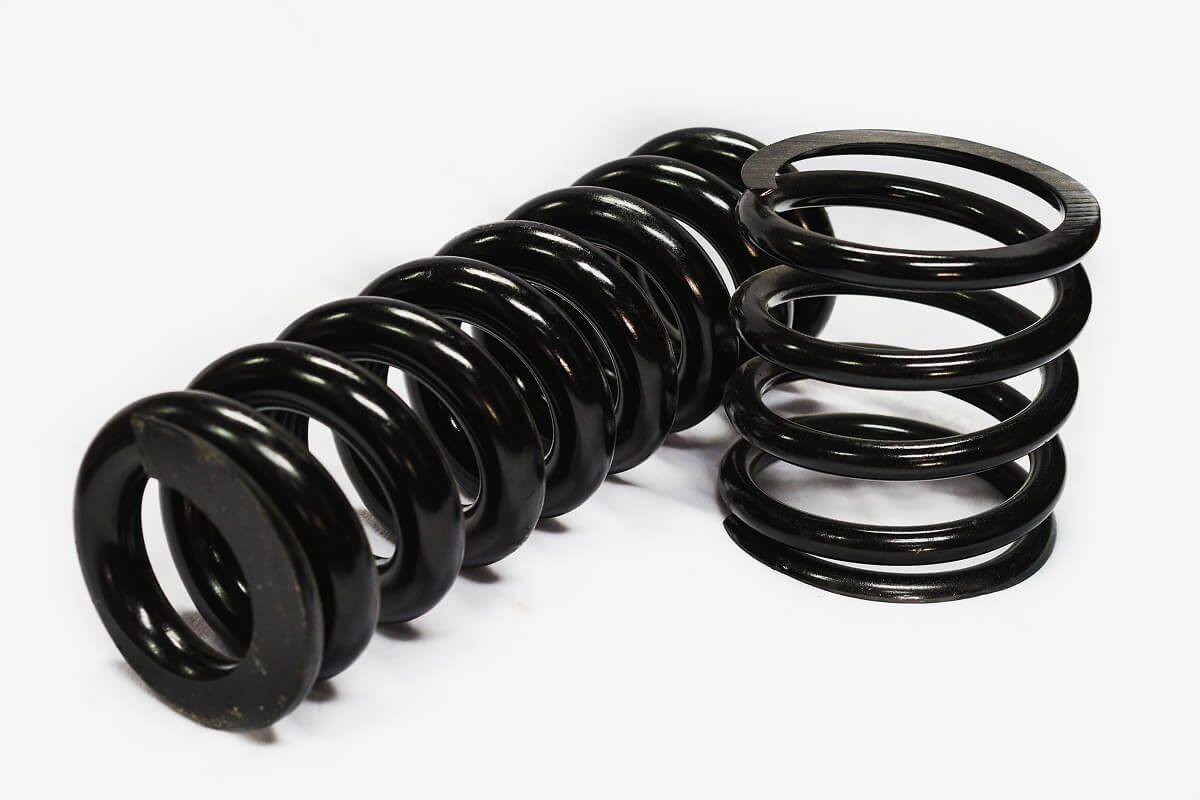

.jpg)
Why Barrel Geometry Changes How a Spring Behaves
The convex profile of a barrel spring redistributes force along the coils. A larger midsection reduces outward bowing at higher deflections and helps manage lateral forces without relying entirely on external guides. This geometry supports consistent load response and can extend service life in applications where standard compression springs struggle to remain stable.
Where Barrel and Tapered Compression Springs Make Sense
Barrel and tapered compression springs are commonly used in guided compression systems, applications with limited radial clearance, off-axis loading conditions, or nested spring designs. Tapered profiles may be used alongside barrel designs when additional clearance or stacking requirements apply.
Design Review, Prototyping, and Validation Support
Barrel compression springs perform best when geometry is aligned with real assembly constraints. Design review helps refine coil progression, spring rate, and solid height before tooling decisions are finalized. Prototyping then allows springs to be evaluated in actual assemblies, confirming fit, load behavior, and cycle performance.
Our support services include:
- Collaborative design review during early development
- Prototype spring builds for testing and validation
- Failure analysis for springs used in existing products
- Product housing support when spring behavior is tied to surrounding components
These services help address performance concerns early and reduce costly revisions later.
Start the Conversation on Your Barrel Compression Spring Design
Stalder Spring Works brings decades of hands-on experience in manufacturing barrel compression springs that balance load control, alignment, and repeatable performance. Reach out to discuss your application requirements, share drawings, or request a quote. Our team is ready to review your design, build prototypes, and support your project from initial concept through production.
Frequently Asked Questions About Barrel Compression Springs
How do barrel compression springs behave at higher compression ratios?
As compression increases, barrel springs tend to remain more centered than straight springs, which can help maintain consistent load transfer late in the stroke. This can be especially useful when assemblies approach solid height.
Are barrel compression springs suitable for dynamic or cycling applications?
They can be, provided that material choice, stress levels, and cycle expectations are aligned with the application. Geometry alone does not determine fatigue life, so operating conditions should always be reviewed.
Can barrel springs be used without a guide rod or sleeve?
In some cases, yes. The geometry can reduce buckling tendencies, but whether external guidance is needed depends on load, stroke length, and surrounding clearances.
