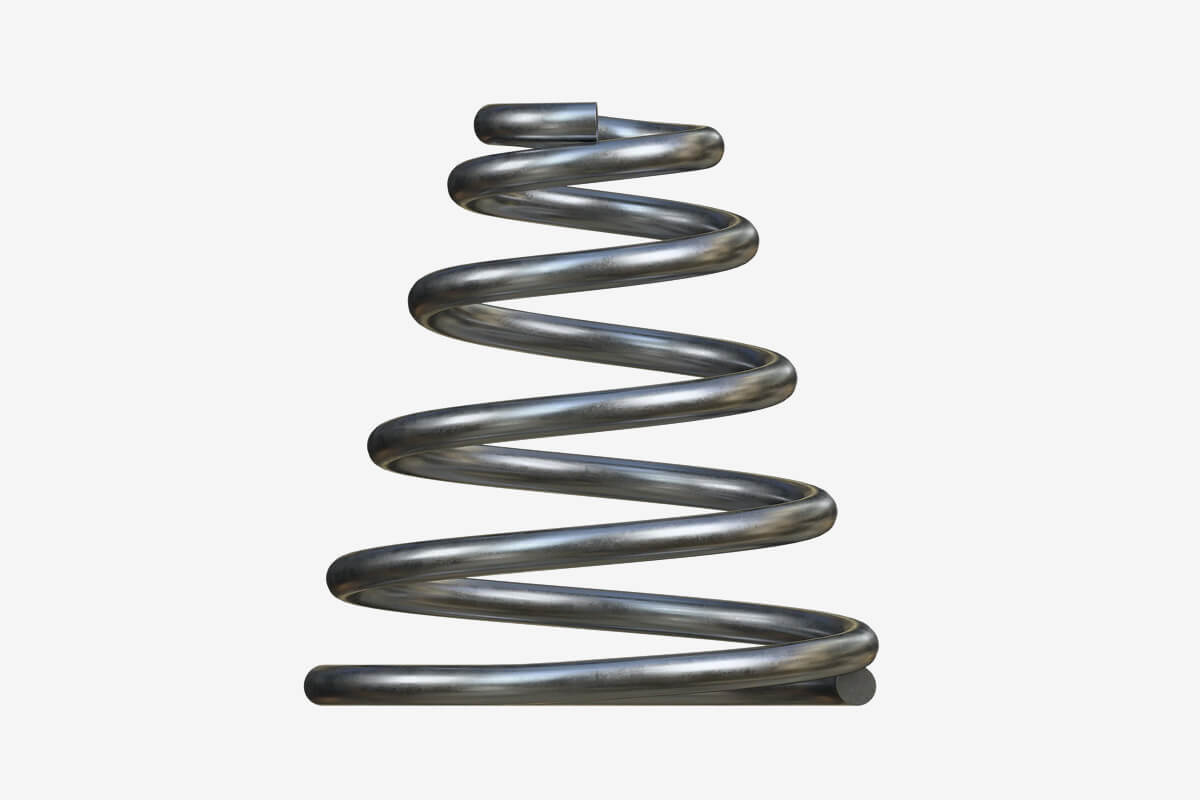

Custom Conical Compression Springs
Space constraints have a way of surfacing late in development. Assemblies tighten up, installed heights shrink, and suddenly a standard compression spring no longer fits or performs as expected. Custom conical compression springs are often selected in these situations because their tapered geometry allows more usable deflection within a smaller envelope, without sacrificing load control.
As a conical spring manufacturer, Stalder Spring Works Inc. works closely with customers to design springs that fit demanding packaging requirements while maintaining consistent performance. If your design is pushing against space limits, request a quote to explore conical spring options early.
When Space Constraints Limit Spring Performance
Cylindrical compression springs can reach solid height quickly in compact assemblies. Coil clash, limited deflection, and interference with housings are common symptoms. These issues often appear after surrounding components are finalized, leaving little room for adjustment.
In these cases, changing spring geometry can be more effective than altering the enclosure. Conical springs taper from one end to the other, allowing coils to nest as the spring compresses. This nesting behavior reduces solid height and helps recover deflection that would otherwise be lost.
Manufacturing Custom Conical Compression Springs With Precision Control
Producing consistent conical springs requires careful control throughout the forming process. Stalder Spring Works uses automatic cooling equipment capable of gradually reducing coil diameter while maintaining tight control over pitch, rate, and free length.
Key manufacturing controls include:
- Automatic coiling with controlled taper geometry
- Precise pitch management to meet load and deflection targets
- Material selection based on environment and cycle requirements
- Stress relief to stabilize spring behavior
- Optional end conditioning for proper seating
This process supports repeatable results from early builds through ongoing production.
How Conical Geometry Improves Deflection & Packaging
The tapered profile of a conical compression spring changes how the spring collapses under load. As compression increases, smaller coils slide inside larger ones, creating a shorter solid height compared to straight springs of similar rate. This geometry can also influence load progression and stability, making conical springs useful when space efficiency and predictable compression behavior must coexist.
Where Conical Compression Springs Make the Most Sense
Custom conical compression springs are commonly used where installed height is limited, high deflection is required, or nesting behavior improves packaging efficiency. They are often introduced during redesigns when cylindrical springs cannot meet updated constraints.
Design Review, Prototyping, and Validation Support
Conical compression springs perform best when geometry is aligned with the surrounding assembly. Early design review helps refine taper angle, spring rate, and solid height before component layouts are locked in. Prototyping then allows springs to be evaluated in real assemblies, confirming fit and compression behavior under actual conditions.
Support services include:
- Design review during early development
- Prototype spring builds for validation
- Failure analysis for existing products
- Product housing support when spring performance depends on enclosure design
These steps help reduce late-stage changes and support smoother transitions into production.
Talk With Us About Your Conical Compression Spring Requirements
Tapered spring geometry can open up options when space and performance are working against each other. Whether you're developing a new assembly or reworking an existing design, early collaboration helps identify the right conical spring configuration before constraints become costly.
Connect with Stalder Spring Works to review drawings, discuss load and deflection goals, or request a quote. Our team is ready to support design review, prototyping, and production for custom conical compression springs tailored to your application.
Frequently Asked Questions About Custom Conical Compression Springs
How does taper angle affect spring performance?
Taper angle influences solid height, load progression, and stability. Small changes can significantly alter how the spring compresses, which is why early evaluation is important.
Are conical springs more difficult to manufacture consistently than straight springs?
They require tighter process control due to changing coil diameter, but with appropriate equipment and controls, consistency can be maintained across runs.
Can conical springs be used in guided assemblies?
Yes, though guide geometry should accommodate the changing outer diameter through compression to avoid interference.
